High Pressure
Filters
50P Series
Applications
Applications for 50P series filters
• Automotive specified equipment
• Hydrostatic transmission circuits
• Servo and proportional controls
• Offshore drilling rigs
• Mining equipment
• Power units
The design objective for all
Parker filters is to achieve a
sensible balance between cost
and performance. We use state
of the art technology to arrive at
innovative yet practical designs,
which are cost effective for
OEM’s and users alike.

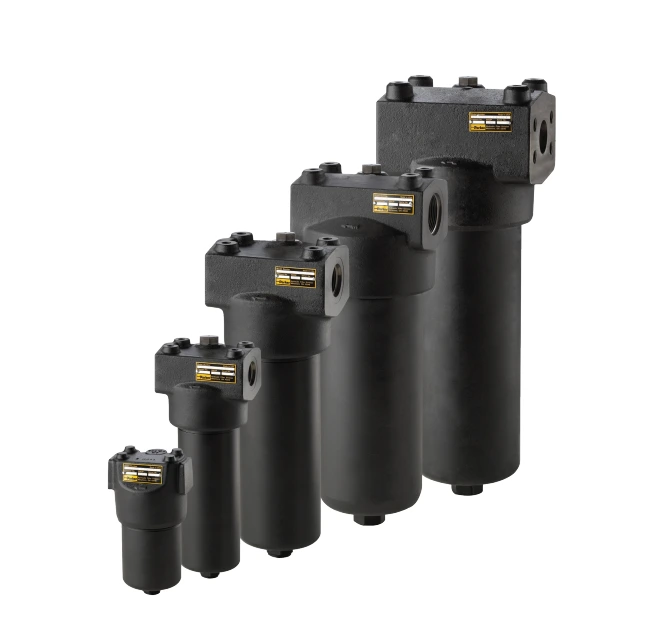

The 50P series allows you to
customize each filter to closely
match your needs. Choose
the options which best fit your
application.

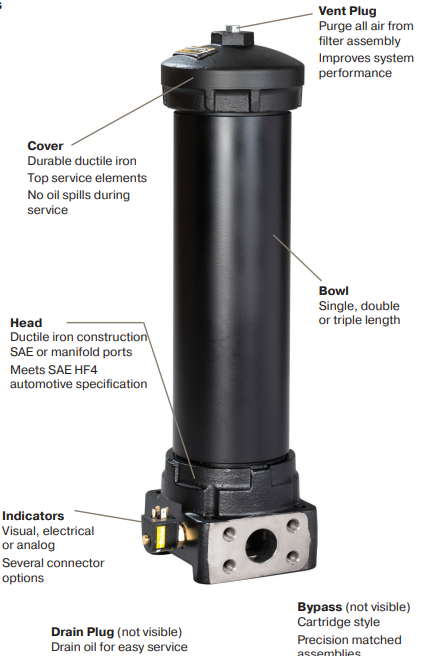

The 50P series filters are bowlup, which provides several
possible advantages. The bowlup mounting makes servicing
the elements quick and easy.
Simply remove the top cover to
access the element. A drain port
is provided to allow oil removal
prior to element servicing. This
design reduces the possibility
of oil spillage and injury to
maintenance personnel.
The 50P series has optional
manifold porting for space
saving. The porting is also
designed to match the installation
of many other manufacturers.
Most important, the 50P series
meets the SAE HF4 automotive
standard
