Manapak Valves
Manapak valves provide a variety of check, flow
control, pressure relief and pressure reducing functions in a compact NFPA D03, D05 and D08 sandwich
style valve. The NFPA D03 valve body conforms to the
ISO 40 mm (1.57") thickness. These valves are
mounted between directional control valves and their
mounting surface
Check Valves
Series CM
• Valve bodies are manufactured from steel which
provide extra strength and durability for longer life.
Internal hardened steel components also provide
longer life.
• Positive shut-off is provided by a fully guided
poppet and allows full flow in the unchecked
position.
• Parker Manapak CM sandwich style check valves
can be used either on the 'P', 'A', 'B', 'T' port or
combination.
• Large internal flow paths allow high flow at low
pressure drop.

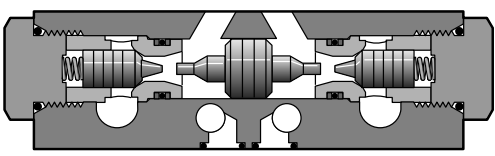

P. O. Check Valves
Series CPOM
• Parker Manapak CPOM sandwich style, pilot
operated check valves can be provided in either
single or double configurations.
• The pilot operated checks may be positioned in 'A'
port or 'B' port; or both 'A' and 'B' ports.
• Valve bodies are manufactured from steel which
provide extra strength and durability for longer life.
Internal hardened steel components also provide
longer life.
• Positive shut-off is provided by a hardened poppet
and cage assembly.
• Large internal flow paths allow high flow at low
pressure drop.
